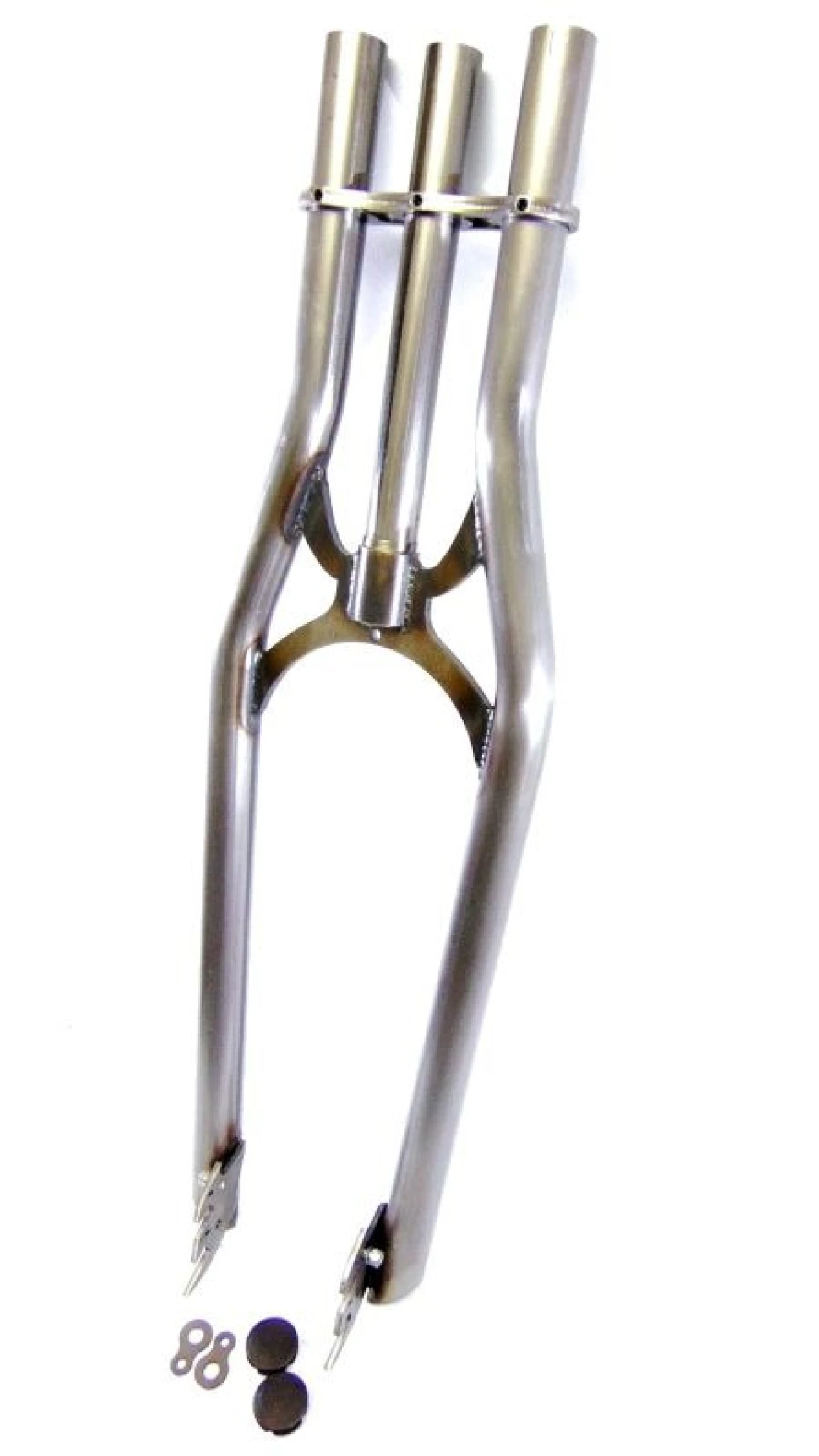

Fork TSP demon

IT

Fork demon tspcyclefarm completely designed and made in Italy!

design innovative that allows the assembly of rims up to 100mm using normal front hubs 32 or 36 spokes.
easy installation on any type of bicycle with steering tube 1 ", nbsp;
possibility to use threaded or ahead set headsets.

- material: steel nbsp;
- welds: tig cr-mo nbsp;
- weight: 2.3 kg
- tube steering: 1 "
- 2 height adjustments nbsp;
- possibility fitting wheels 24 "and 26" (28 "only on high adjustment)
- width maximum circles: 100mm on diameter 24 "26" 28 "
- application universal on boats 1 "
nbsp; (i tubes have been calculated for dinghy lengths up to 18cm, it will be sufficient nbsp;
nbsp; remove the excess tube to adapt the fork to the frame)
- possibility to install 160mm disc brakes on the right nbsp; or drum brakes on both right / left sides with the appropriate supports,
nbsp; in in the absence of braking systems, no type of support is mounted, obtaining a clean and elegant appearance!
- color: unpainted

ALL THE MEASUREMENTS AND SCHEME OF ASSEMBLY IN THE PHOTO

EN

Demon Fork TSP Custom Fork

NEW !!!

Exceptional Custom Fork for all rims up to 100mm width.

Innovative, Italian Design connects rolling easiness with reliable stability.

TSP sets new standards and shows again manual perfection.

Multifunctional, nice shaped axle mounts complete this special attention getter on your custombike!

Raw unlaquered

for 24 oder 26 inch tires

up to 100 mm rim width,

1 1/8 inch shaft,

Length of shaft: 240 mm - can be cutted down to 80 mm

Brake mounts (left or right) for disk or drum brake is an optional add on ready to order

Length over all: 705 mm

Distance between axle mount and lower bridge 406 mm (26 inch axlel mount), 377 mm (24 inch axle mount)

Diameter of fork tubes: 32 mm

Width between fork tubes: 144 mm.

Width at axle mount: 100 mm

The forks were developed for the 100 mm rims.

Length of shaft and fork tubes are shortable.

Comes with end cover plugs for the fork tubes.

Made in Italy
