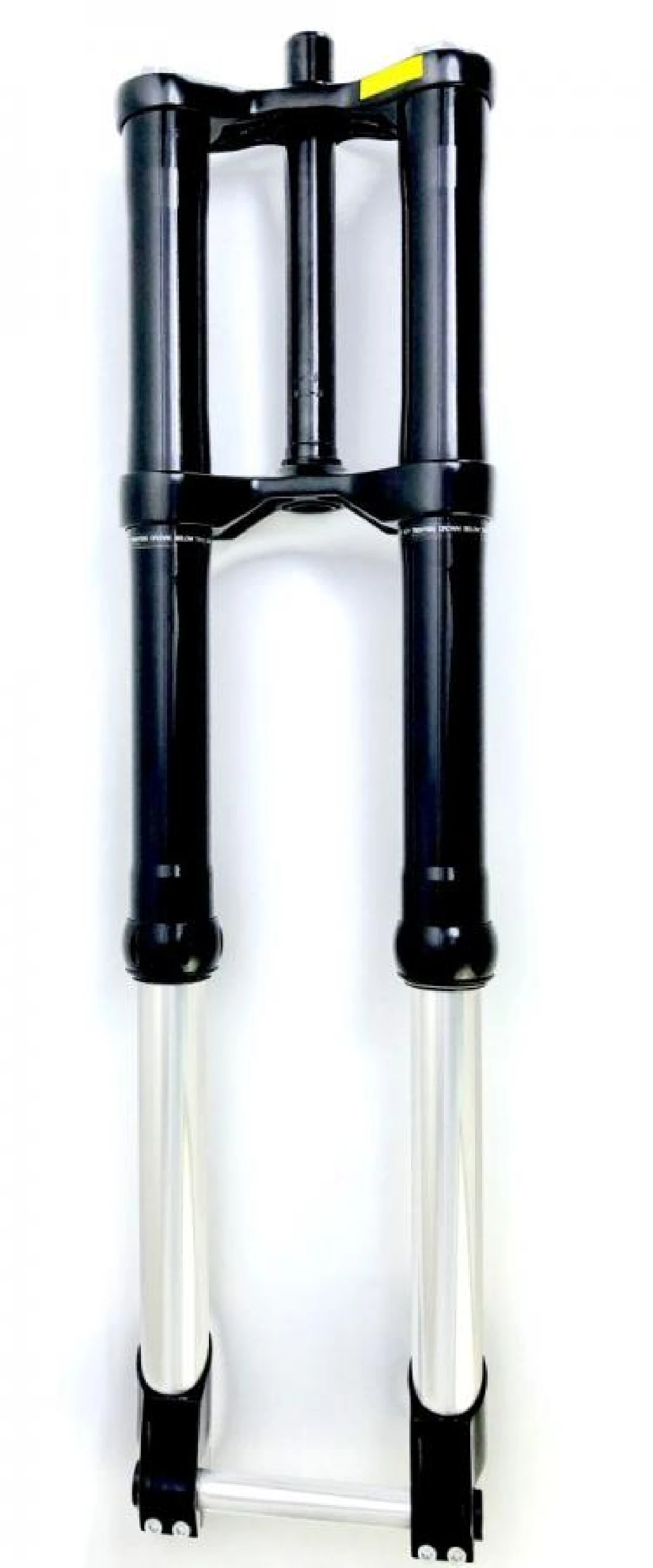

180mm Cushioned Motorcycle Downhill Fork

  Suspension fork ideal for motorbike style creations with excursion   180mm.

  Mounts tru axle hubs with tires up to 26 x 3.0

  Technical specifications

  EN

  KustomBikes MOTO Fork

  Downhill Upside - Down Suspension Fork up to 26 \"perfect for the cool look of a   heavy motobike.

  Produced for KustomBikes by Mountainbike Racing\'s team leader, the range-topping   this downhill fork now offers 180 mm (~ 7,09 inches) of smooth travel from and MCU    Amp; spring dumper with rebound adjustment.

  It needs a 20 mm (~ 0.8 inches) nbsp; thru axle (110 mm (~ 4.3 inches) nbsp; hub width)   and offers

  disc brake mount IS2000

  Noble and supercool till 26 nbsp; inch. wheels, nbsp; 1 1/8 steerer

  Can fit tires up to 26 x 3.0

  Size: 26 \"Downhill

  Crown: alloy forged dimension: 150 mm (~ 5.9 inches) (middle to middle)

  Preload: Rebound / Compression

  Bridges / crowns: nbsp; forged ,   T6 heated, 6061 Aluminum

  Stanchion: nbsp; nbsp; butted,   T8 heated, 6061 Aluminum

   Tubes: nbsp; hard-anodised,   T9 heated, 6061 Aluminum

  Dumper: MCU amp; Spring

  Max. Travel: ~ 180 mm (~ 7.08 inches)

  Width between tubes: ~ 103 mm (~ 4.06 inches)

  Steerer length: ~ 230 mm (~ 9.06 inches)

  width between axle mounts: 110 mm (~ 4.33 inches)

  with 20 mm thru axle (~ 0.79 inches)

  fork tube length: nbsp; ~ 750 mm (~ 29.53 inches)

  Diameter outer leg / slider: ~ 103 mm (~ 4.06 inches)

  Distance between Axle and lower crown: ~ 510 mm (~ 20.08 inches) nbsp; - is matter   of how you assemble the crown

  Weight: ~ 4.35 kg (~ 9.59 pounds)
